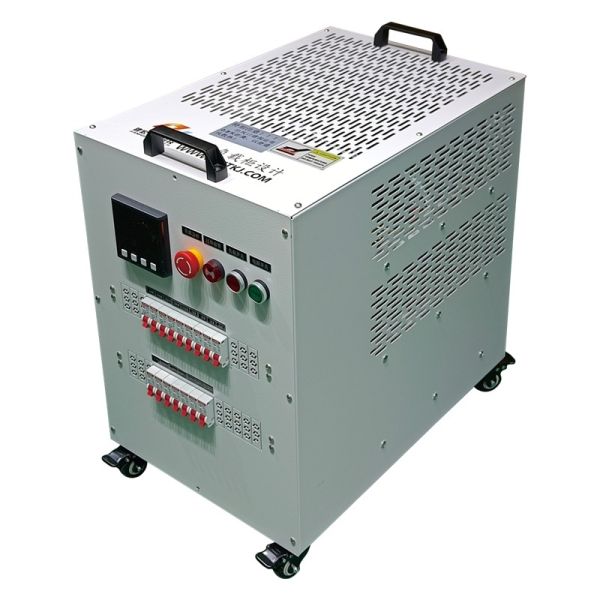

10KW AC220V RCD Load Bank with Adjustable Power Factor for Single Phase Power Supply Testing

  • 1
  • 2
  • 3

Model Number : JH-RCD-10KWA220-W9K

Brand Name : Jianhong

Certification : CE

Place of Origin : China

MOQ : 1

Price : $1300~$1426

Payment Terms : T/T

Delivery Time : 25-30 work days

Packaging Details : Wooden box

Product name : RCD load bank

Power : 10KW

Color : Grey

Class of protection : IP20

Accuracy of resistance : ±3

Power factor : 0.7-1 adjustable

Contact Now

10KW AC220V RCD Load Bank for Single Phase Power Supply Testing
The RCD load bank utilizes an innovative resistor-capacitor composite design to deliver 10kW continuous load capacity in AC220V environments. With an adjustable power factor range of 0.7-1, this load bank is ideal for simulating complex load scenarios across various industrial applications.
Key Features
  • Compact Design: Easy to transport and set up in any testing environment
  • Efficient Performance: Reliable results with consistent load delivery
  • User-Friendly Controls: Simple, intuitive operation suitable for all experience levels
  • Versatile Applications: Adaptable to wide range of industrial testing scenarios
Applications
  • Generator Testing: Verify performance and reliability of industrial generators
  • Electrical System Validation: Ensure system integrity through real-world load simulation
  • Power Quality Analysis: Assess voltage fluctuations and harmonic content
  • Renewable Energy Integration: Validate compatibility with existing power grids
Technical Specifications
Model Number JH-RCD-10KWA220-W9K
Brand Jianhong
Dimensions 600×400×650mm
Weight 36kg
Rated Voltage AC220V
Rated Power 10kW
Auxiliary Power AC220V 50/60Hz
Power Factor 0.7-1 tunable
Resistance Accuracy ±3% (Sheet resistor)
Cooling Method Forced air cooling, forward and back outlet
Working Environment Temperature: -10 to 50°C, dry and well ventilated
Control Method Manual push button control
IP Class IP20 (indoor environment)
Display Method Simultaneous display of load voltage, current and power
Adjustable Range R: 100W,200W,200W,500W,1kW,2kW,2kW,4kW (superposition)
C: 100W,200W,400W,800W,1.6kW,3.2kW,4kW,10kW (superposition)
Load Protection High temperature alarm, fan load interlock protection, status indication, overcurrent protection, emergency stop
Working Mode Continuous online operation, 7×24 working system, 15-year resistor lifespan
Thermal Management System
The RCD load bank features a bidirectional forced air cooling system with six sets of 220V industrial fans forming a forward rear outlet air duct. Testing demonstrates that internal temperature rise is controlled within 70K during continuous 24-hour operation at 50°C ambient temperature. This advanced heat dissipation design extends resistor lifespan to 15 years, significantly exceeding industry standards for similar products.
